What grinding cup wheel do I need for concrete?

For general concrete grinding and leveling, a double-row segment cup wheel is the most versatile choice. For aggressive coating removal, a turbo cup wheel cuts faster.

Can I use a grinding cup wheel for polishing concrete?

Cup wheels are for grinding and surface prep — they remove material aggressively. For polishing, switch to diamond polishing pads which use progressively finer grits.

What angle grinder do I need for a grinding cup wheel?

Most 4-inch and 5-inch cup wheels fit standard angle grinders with a 5/8-11 threaded arbor. For heavy-duty grinding, a 7-inch grinder provides more power and coverage.

Grinding Cup Wheels: The Complete Buying Guide

Diamond grinding cup wheels are the go-to tool for concrete surface preparation. This grinding cup wheel buying guide explains the different segment patterns, how to match a cup wheel to your grinder and your job, and what to look for when comparing products.

Whether you’re removing coatings, leveling high spots, preparing a floor for an overlay, or smoothing a concrete countertop, the right grinding cup wheel makes the difference between an efficient job and a frustrating one.

What Grinding Cup Wheels Do

Grinding cup wheels are designed for surface work — they remove material from the top of concrete rather than cutting through it. They attach to angle grinders and work face-down against the surface. Common applications: removing paint, epoxy, mastic, and thin-set from concrete; leveling high spots between pours; smoothing rough surfaces; and preparing concrete for new coatings or polishing.

They’re not cutting tools — that’s what diamond blades and cut-off wheels are for. This grinding cup wheel buying guide focuses on surface work.

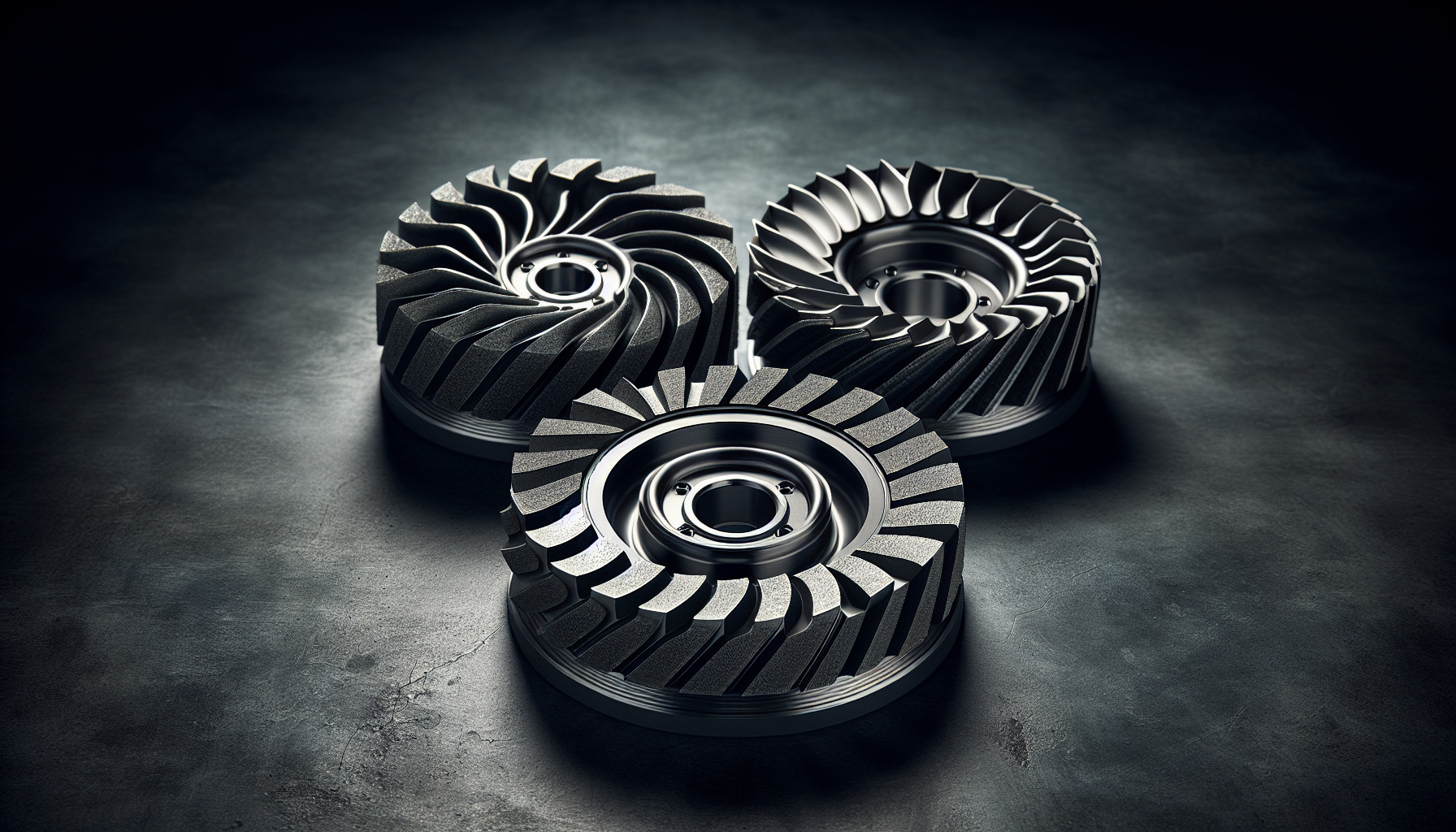

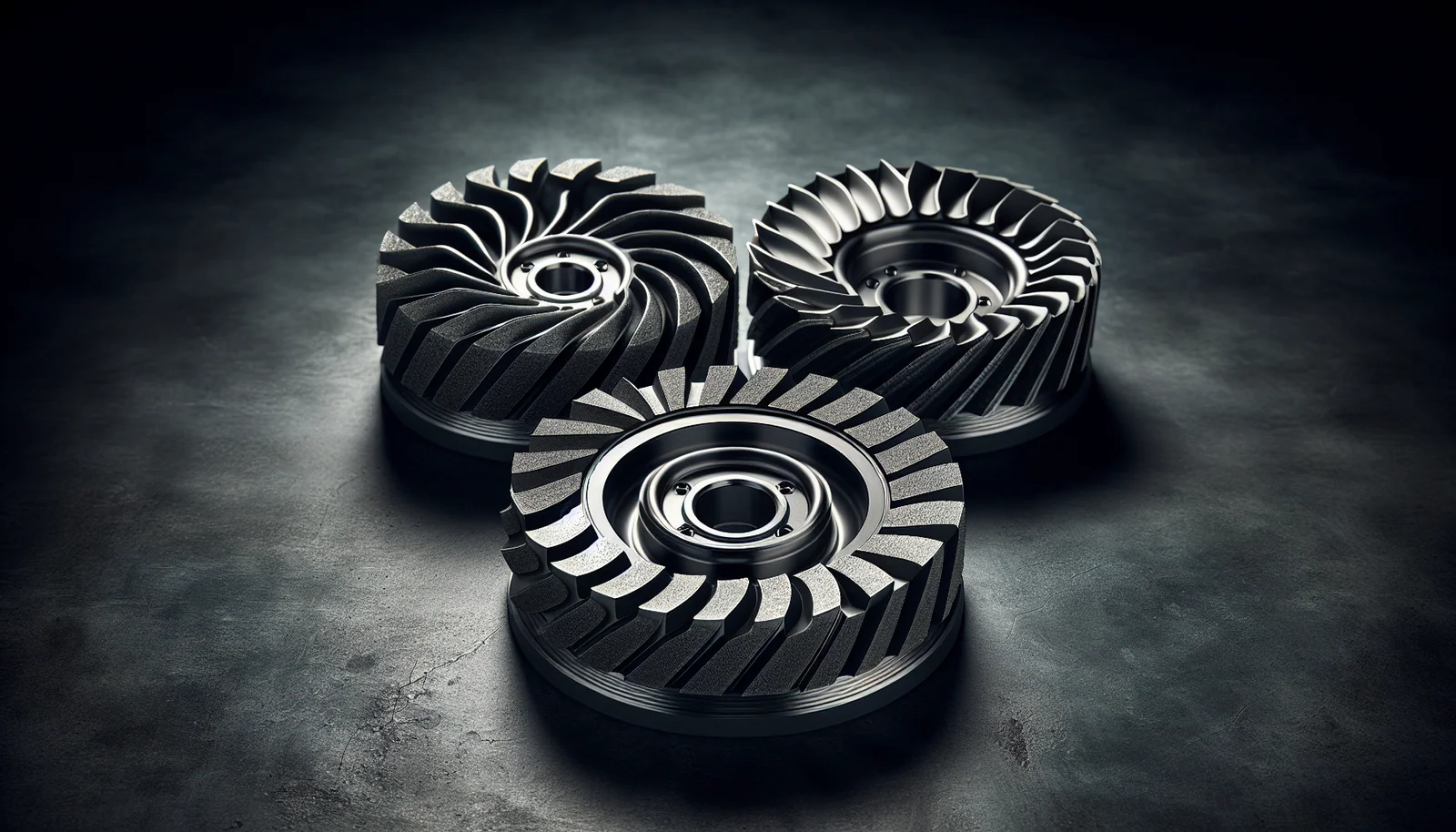

Segment Patterns Explained

Single Row

One ring of diamond segments around the outer edge. Most aggressive — removes material fast. Open design concentrates grinding force and clears debris easily. More vibration, rougher finish. Best for: heavy coating removal (thick epoxy, urethane), mastic removal, aggressive leveling.

Double Row

Two concentric rings of segments. More contact area = smoother finish, less aggressive removal. The most versatile pattern and best general-purpose choice. Best for: general surface smoothing, moderate coating removal, surface prep for coatings.

Turbo

Angled or wavy segments in a turbine pattern. Improves cooling and balances aggressiveness with finish quality. Splits the difference between single row speed and double row smoothness. Best for: general-purpose grinding, coating removal with reasonable finish.

Segmented (Full Face)

Segments covering most of the grinding surface. Smoothest finish, slowest removal. Best for: finish grinding, countertop work, and polishing prep.

For a deeper comparison, see Single Row vs Double Row vs Turbo Cup Wheels.

Sizes and Grinder Compatibility

4” and 4.5” — Standard small angle grinders. Most popular for general concrete work. Lightweight, good for detail work and edges.
5” — 5” grinders (common in European brands). Slightly larger grinding area.
7” — 7” angle grinders. More coverage per pass, ideal for larger floor areas. Requires a more powerful grinder.

Thread Sizes

5/8”-11 — Standard for American-market grinders (DeWalt, Milwaukee, Makita, Bosch U.S.). By far the most common in the U.S.

M14 — Standard for European-market grinders (Metabo, Flex, Hilti). Not interchangeable with 5/8”-11 without an adapter. Verify before ordering.

Choosing a Grinding Cup Wheel by Application

Coating Removal (Epoxy, Paint, Mastic)

Single row cups for thick, gummy coatings. Turbo cups for thinner coatings like paint. Avoid double row for coating removal — the contact area causes loading and heat buildup that melts coating into segments. For the most aggressive option, see Best PCD Grinding Cup Wheels.

Leveling and Stock Removal

Single row or turbo with aggressive diamond. Take multiple passes rather than removing too much at once. See How to Grind a Concrete Floor.

Surface Prep for Coatings or Overlays

Double row or turbo at medium aggressiveness. Open the pores without creating deep scratches that show through the new coating.

Countertops and Finish Work

Full-face or fine-grit cups for shaping and smoothing. Transition from cup wheel to diamond polishing pads for a polished finish.

Dust Control

Grinding concrete generates crystalline silica dust — a serious health hazard. OSHA’s silica rule (Table 1) requires dust controls.

Dust shrouds with vacuum extraction — A shroud attaches to the grinder and captures dust at the source via HEPA vacuum. Most effective and most common approach.

Wet grinding — Water suppresses dust but creates slurry. Less common in the field, standard in some fabrication work.

See our Silica Dust Safety Guide for full OSHA compliance details.

Common Mistakes

Using the wrong segment pattern — single row on a finish job leaves deep scratches; double row on heavy coating removal is painfully slow.

Wrong thread size — 5/8”-11 and M14 are not interchangeable. Check your grinder before buying.

No dust control — grinding without a shroud/vacuum or water violates OSHA silica standards and is a serious health risk.

Overheating — grinding too aggressively without pausing causes segment damage. Take breaks, especially in dry grinding.

For our top product picks, see Best Grinding Cup Wheels for Concrete.
