Best PCD Grinding Cup Wheels for Coating Removal

The best PCD grinding cup wheels remove thick epoxy, mastic, urethane, and paint 3-5× faster than standard diamond cup wheels without loading. Polycrystalline diamond segments use large, chisel-like cutting edges that shear coatings instead of grinding through them — the loading problem that kills standard diamond wheels on sticky materials doesn’t apply. This guide covers segment-count picks, technique, and when to use PCD versus standard diamond.

The Short Answer

For contractors removing coatings from concrete:

1. Best for thick epoxy (2mm+) — Virginia Abrasives 6-Segment PCD Cup Wheel. Large PCD inserts cut fastest through industrial coatings.
2. Best for mixed coatings (thin to medium) — Virginia Abrasives Multi-Segment PCD Cup Wheel. Smaller PCD segments in higher count — slightly slower but leaves smoother surface.
3. Best premium for production — Husqvarna Diaflex PCD ($140-200). Longest life in the category, most consistent cut.
4. Never use PCD on bare concrete. Switch to a standard diamond cup wheel once the coating is removed. See Best Grinding Cup Wheels for Concrete.

Top Picks at a Glance

Tier	Cup Wheel	Segments	Best For	Typical Price
Best for Thick Coatings	VA 6-Segment PCD	6 large PCD	Industrial epoxy, thick mastic	$90-140
Best Versatile	VA Multi-Segment PCD	12-18 smaller PCD	Mixed coating thickness	$95-150
Production Premium	Husqvarna Diaflex PCD	6 or 8	Daily coating-removal crews	$140-200
Budget Option	Off-brand 6-segment PCD	6 small PCD	Occasional one-off	$40-70
Heavy Industrial	Diamatic or Lavina PCD	8-10 large	Continuous industrial work	$180-260

How We Picked

Every wheel here uses polycrystalline diamond segments specifically for coating removal. We ranked by: (1) speed of removal on 2mm industrial epoxy (standard benchmark), (2) segment life (square feet per wheel), (3) resistance to loading under sustained use. Virginia Abrasives PCD cup wheels perform well in our field use; Husqvarna Diaflex is the premium benchmark for contractors running coating-removal crews daily.

PCD vs. Standard Diamond: When to Use Which

This is the decision that matters most. PCD and standard diamond solve different problems.

PCD Excels At

• Thick epoxy (2mm+) — industrial floors, thick garage epoxy, concrete sealers
• Urethane coatings — sports floor surfaces, industrial liquid-applied coatings
• Heavy mastic and adhesive — carpet mastic, tile thinset leftover, vinyl adhesive
• Thick paint buildup — multi-layer paint from repainted floors
• Any coating that loads standard diamond wheels

Standard Diamond Excels At

• Bare concrete grinding (PCD gouges bare concrete)
• Thin coatings under 10 mil (PCD is overkill and expensive)
• Surface leveling (double-row diamond is purpose-built)
• Polishing preparation (turbo cup wheels leave smoother surface)
• Any work where the pattern of PCD gouging would need regrinding

The PCD Rule

PCD is for coating removal only. Once the coating is gone, switch to a standard diamond cup wheel for any work on the bare concrete below. Continuing to use PCD on bare concrete gouges the surface and requires extensive regrinding to recover.

Why PCD Doesn’t Load

Standard diamond cup wheels have diamond grit embedded in a metal or resin bond. On sticky coatings, the coating melts from friction heat and fills the gaps between diamond particles. The wheel goes from “cutting with diamonds” to “sliding coating across coating” — it stops cutting productively.

PCD segments work differently. Each segment is a chunk of sintered polycrystalline diamond with a sharp, chisel-like edge. The segment shears coatings cleanly rather than grinding through them. Debris ejects through the large gaps between segments instead of packing between diamonds. No loading, continuous cut.

This design is specifically optimized for coatings. On bare concrete, the same chisel-like edges gouge the stone instead of cutting evenly — which is why PCD is wrong for concrete grinding.

Best PCD Cup Wheels by Segment Configuration

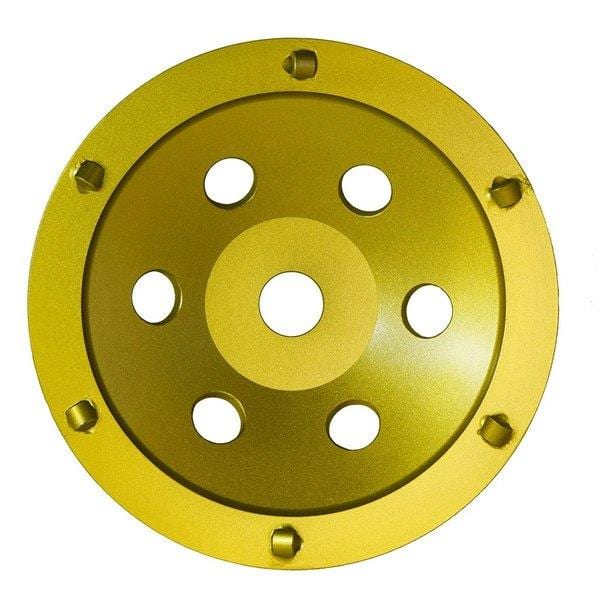

6-Segment PCD (Standard Aggressive)

Six large PCD segments with wide gaps between them. The standard configuration for aggressive coating removal. Fastest removal rate; leaves the roughest surface.

Pros: Fastest coating removal. Large segments last longer per segment. Wide gaps eject debris efficiently.

Cons: Roughest surface — may require additional grinding with standard diamond before recoating. Overkill for thin coatings.

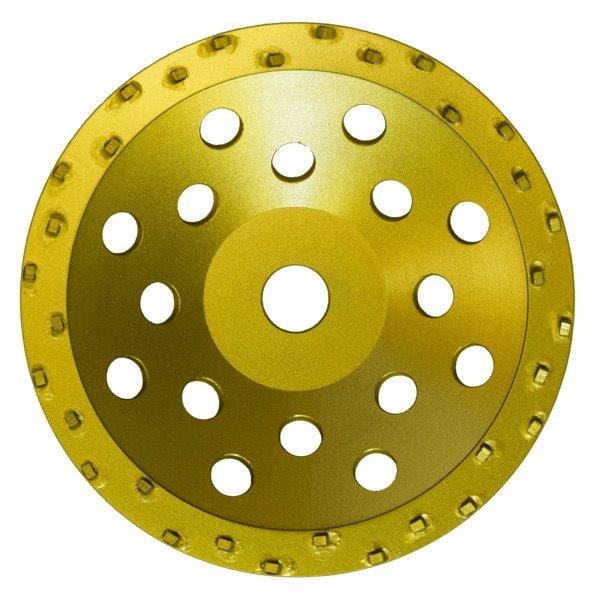

Multi-Segment PCD (12-18 Smaller PCDs)

More segments in a tighter pattern. Smoother finish than 6-segment at the cost of slightly slower removal. The best choice when the post-removal surface needs to be closer to recoat-ready without additional grinding.

Pros: Smoother surface than 6-segment. Better for thin-to-medium coatings. Less aggressive gouging if misused on bare concrete (not an excuse to use on bare concrete).

Cons: Slower removal on thick coatings. Slightly shorter segment life per PCD (more segments, each thinner). Higher price point.

Premium Production Options

Husqvarna Diaflex PCD ($140-200) — industry-standard premium PCD for coating-removal crews. Consistent cut, long life, reliable availability through Husqvarna dealers.

Diamatic PCD ($180-260) — heavy-duty industrial tool used by commercial floor-restoration contractors. Overkill for most contractor work; essential for industrial-coating removal.

Lavina PCD — matches Lavina floor-grinder format for walk-behind work (not angle-grinder mounted).

PCD Cup Wheel Sizing

PCD cup wheels come in the same sizes as standard diamond cup wheels:

Size	Thread / Arbor	Max RPM	Best For
4″ / 4.5″	5/8″-11 or M14	12,000-13,300	Standard angle grinders, trim work
5″	5/8″-11	11,000-12,000	Mid-size grinders, larger coverage
7″	5/8″-11	8,500-9,000	Large grinders, production work

Match the wheel size to your angle grinder’s rated size. Never use a wheel larger than the grinder is rated for — guard won’t cover it and RPM mismatch is a safety hazard.

Grinder Requirements

PCD cup wheels load harder on motors than standard diamond. Grinder amperage matters.

Grinder Size	Minimum Amperage	Recommended
4.5″ angle grinder	10 amps	13+ amps
5″ angle grinder	11 amps	14+ amps
7″ angle grinder	13 amps	15+ amps

Underpowered grinders bog down under PCD load. They overheat and burn out under sustained coating-removal work. Invest in a pro-grade grinder if PCD coating removal is a regular part of the job.

Recommended grinders for PCD work:

• Makita 9557PB (4.5” grinder, 13 amps) — reliable workhorse
• DeWalt DWE402 (4.5” grinder, 11 amps) — budget-friendly pro grinder
• Bosch GWS18V-45 (battery 4.5” grinder) — modern cordless option with adequate power

Dust Control for Coating Removal

Coating removal creates hazardous dust. Beyond silica (which is always present when grinding concrete), coating dust can contain:

• Silica from concrete beneath — OSHA-regulated respirable crystalline silica
• Lead from old paint (pre-1978 floors)
• Asbestos from old flooring mastic or tile adhesive (pre-1980s buildings)
• VOCs from recent coatings still outgassing
• Unknown industrial additives from sealers and urethanes

Minimum PPE and dust control:

• Dust shroud sized for the cup wheel (4.5”, 5”, or 7”)
• HEPA-rated vacuum (wet/dry capable)
• P100 respirator (not N95)
• Tyvek coveralls for heavy coating-removal jobs
• Seal the workspace and protect adjacent areas
• Test old materials for lead and asbestos before starting

For full OSHA compliance and respirator specs, see Silica Dust Safety Guide.

Technique for PCD Coating Removal

Keep the Grinder Flat

PCD segments are aggressive. Tilting the grinder concentrates force on one edge of the cup wheel, gouging the concrete beneath the coating and wearing one side of the wheel. Hold the grinder flat and apply even pressure across the wheel face.

Move Steadily in Overlapping Passes

Don’t dwell in one spot. Move the grinder continuously in 50% overlapping passes. Dwelling creates deep gouges that require regrinding to remove.

Let the Wheel Cut

PCD cuts by shearing. Pushing harder doesn’t speed up the cut — it causes the segments to ride above the coating instead of shearing through it. Maintain moderate pressure and a steady feed rate.

Work Coating Thickness in Layers

On very thick coatings (3mm+), take multiple passes at reduced depth rather than one aggressive pass. Multiple light passes produce a more uniform result than one deep pass with segment-loading risk.

Switch to Standard Diamond After Coating Removal

Once the coating is gone and you see bare concrete, stop using PCD. Switch to a double-row or single-row diamond cup wheel to smooth the concrete surface before applying the next coating or proceeding to polishing. PCD gouges bare concrete — every pass on bare concrete creates work for the next phase.

Common Problems and Fixes

PCD Wheel Jumps or Chatters

Usually the grinder is underpowered or the wheel is being held at an angle. Hold the grinder flat; use a more powerful grinder if available.

Segments Break Off

Over-speed (RPM above the wheel’s rating), dropping the wheel, or sustained heavy side-load. A PCD wheel with missing segments is unsafe — retire immediately.

Wheel Wears Unevenly

Grinder held at an angle. One side of the wheel sees all the load. Re-check grinder technique — flat and steady.

Gouges in the Concrete Beneath the Coating

Wheel held at an angle, dwelling in one spot, or using PCD on bare concrete after the coating was gone. These gouges require regrinding with a standard diamond cup wheel to recover.

Loading Despite Using PCD

Very rare on proper PCD wheels, but can happen on cheap off-brand PCD with small segments that approximate standard diamond pattern. Verify the wheel is actually PCD (large chisel-edge segments, not small diamond grit). Switch brands if loading persists.

Cost Analysis: PCD vs. Standard Diamond on Coatings

The numbers favor PCD on any volume coating-removal work:

Scenario	PCD	Standard Diamond
1,500 sq ft thick epoxy	1 wheel @ $100	10-15 wheels @ $40 each ($400-600)
500 sq ft medium epoxy	1 wheel @ $100 (uses 30%)	3-5 wheels @ $40 each ($120-200)
100 sq ft thin paint	1 wheel @ $100 (uses 10%)	1-2 wheels @ $40 each ($40-80)

PCD wins dramatically on thick coatings. On thin coatings, standard diamond is cheaper for small jobs but PCD still wins on larger areas or repeat use.

Recommended PCD Cup Wheels

Cup Wheel	Segments	Size	Best For	Link
VA 6-Segment PCD	6 large PCD	4.5″	Thick epoxy, mastic	VA Amazon store
VA Multi-Segment PCD	12-18 small PCD	4.5″	Mixed coating, smoother finish	VA Amazon store
Husqvarna Diaflex PCD	6 or 8	4.5″ / 5″ / 7″	Production coating removal	Husqvarna dealer
Diamatic PCD	8-10	4.5″ / 7″	Heavy industrial	Dealer
Lavina PCD	Matches grinder	Floor format	Walk-behind floor work	Lavina dealer

Browse the full Virginia Abrasives cup wheel lineup on Amazon →

Related Workflows

PCD is one tool in the coating-removal workflow. Related:

• After coating removal — switch to standard diamond: Best Grinding Cup Wheels for Concrete
• Comparing cup wheel patterns — Single-Row vs. Double-Row vs. Turbo
• Floor grinding technique — How to Grind a Concrete Floor
• Cup wheel buying framework — Grinding Cup Wheel Buying Guide

For dust safety, see Silica Dust Safety Guide.
