Best Grinding Cup Wheels for Concrete

The best grinding cup wheels for concrete match the segment pattern to the job — single-row for aggressive coating removal, double-row for general surface prep, turbo for smooth finish grinding, and PCD for thick industrial coatings. This guide ranks the top picks by application, grinder size, and how they load under real concrete work.

The Short Answer

For most contractors grinding concrete on a 4.5” or 5” angle grinder:

1. Most versatile — Virginia Abrasives Double-Row Cup Wheel. The “buy one cup wheel” pick. Handles leveling, light coating removal, and general prep.
2. Best for aggressive coating removal — VA Single-Row Cup Wheel. Open segment pattern resists clogging on paint, thinset, and mastic.
3. Best for smooth finish — VA Turbo Cup Wheel (spiral). Continuous spiral rim produces the smoothest surface, ideal before polishing or coating application.
4. Best for thick epoxy or mastic — VA PCD Cup Wheel. Polycrystalline diamond segments cut 3-5× faster on cured coatings than standard diamond.

Top Picks at a Glance

Tier	Cup Wheel	Pattern	Best For	Typical Price
Most Versatile	VA Double-Row	Two rings of segments	Leveling, general surface prep	$35-60
Aggressive	VA Single-Row Turbo	One ring of staggered segments	Paint, thinset, coating removal	$30-55
Smooth Finish	VA Turbo (Spiral)	Continuous spiral rim	Finish grinding, polishing prep	$40-70
Coating Specialist	VA PCD Cup Wheel	6-segment or multi-segment PCD	Industrial epoxy, mastic, paint (thick)	$90-180
Budget DIY	Off-brand 4.5” Double-Row	Two rings, lower diamond concentration	Occasional homeowner use	$15-30

Browse the full Virginia Abrasives cup wheel lineup on Amazon →

How We Picked

Every wheel here is a diamond or PCD cup wheel rated for concrete surface preparation on angle grinders. We ranked by three criteria: cut speed on the intended material, resistance to segment loading (clogging), and cost per square foot of finished surface. Performance notes come from our own use of Virginia Abrasives cup wheels on commercial grind-and-coat work.

Best for General Surface Prep: Double-Row Cup Wheels

Double-row cup wheels handle the most common concrete prep tasks — leveling slab high spots, removing thinset after tile demolition, and creating a surface profile before coatings or overlays. Two rings of segments arranged in a staggered pattern balance cut speed with finish quality.

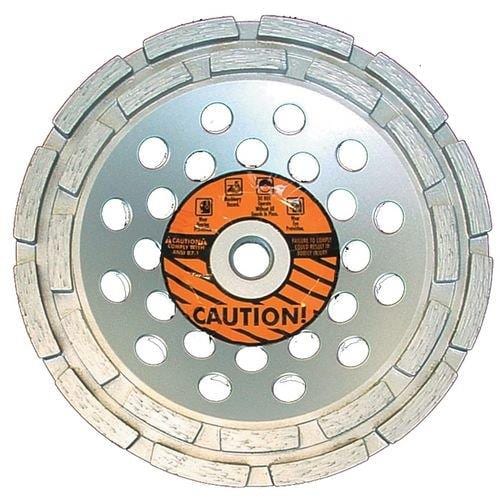

Virginia Abrasives Double-Row Diamond Cup Wheel

Specs: 4.5″ or 7″ diameter, 5/8″-11 threaded arbor, 12-14 staggered diamond segments, segment height ~7mm, max RPM 13,300 (4.5″) or 8,500 (7″).

Pros: Best all-around pick — handles 80% of concrete prep jobs. Good blade life on standard concrete. Wide availability. Fits every standard angle grinder.

Cons: Medium bond loads on sticky coatings like fresh mastic — step up to PCD for those. Not the smoothest finish — plan on a turbo pass if polishing follows.

Best for Aggressive Coating Removal: Single-Row Cup Wheels

Single-row cup wheels have one ring of segments with wider gaps between them. The open pattern prevents segment loading when grinding sticky materials — paint, thinset, mastic, and adhesives. Aggressive cut speed at the cost of finish smoothness.

Virginia Abrasives Single-Row Turbo Cup Wheel

Specs: 4.5″ diameter, 5/8″-11 threaded arbor, 6-8 wide-gap diamond segments, max RPM 13,300.

Pros: Resists loading on sticky coatings. Fastest material removal in the standard-diamond category. Good for demolition cleanup after tile or carpet removal.

Cons: Rough surface finish — not suitable as a final pass before coating application. Segment count lower than double-row, so blade life per dollar is shorter on pure concrete.

Best for Smooth Finish: Turbo Cup Wheels

Turbo cup wheels use a continuous spiral rim rather than discrete segments. The spiral pattern produces the smoothest grinding finish of any cup wheel type — useful as the final pass before polishing progression or coating application.

Virginia Abrasives Turbo Cup Wheel (Spiral)

Specs: 4.5″ diameter, 5/8″-11 threaded arbor, continuous spiral rim, max RPM 13,300.

Pros: Smoothest finish of any cup wheel. Good scratch removal on previously ground surfaces. Ideal transition wheel before resin-bond polishing pads.

Cons: Slower material removal than double-row or single-row wheels. Overkill if a coating (not polish) is the finish — a double-row does the same prep for less money.

Best for Thick Coatings: PCD Cup Wheels

PCD (polycrystalline diamond) cup wheels use large synthetic diamond segments designed specifically for coating removal. They cut cured epoxy, mastic, paint, and glue 3-5× faster than standard diamond because the PCD segments are harder and the segment design flushes debris more effectively. For heavy coating work, PCD is the right tool — standard diamond cups load and stall.

Virginia Abrasives PCD Cup Wheel

Specs: 4.5″ diameter, 5/8″-11 threaded arbor, 6 or 18+ PCD segments, max RPM 12,000.

Pros: Dramatically faster on thick coatings. Doesn’t load. Longer life on coating work than any diamond cup wheel. Essential for industrial epoxy floor removal.

Cons: 3-4× the price of standard diamond cup wheels. Overkill for general concrete grinding — PCD segments wear slower on concrete but the premium doesn’t pay back on pure-concrete work. Best used as a dedicated coating-removal tool.

For deeper coverage see our Best PCD Grinding Cup Wheels for Coating Removal guide.

By Grinder Size: 4.5” vs 5” vs 7”

4.5” and 5” Cup Wheels

The most popular sizes. Fits standard 4.5″ or 5″ angle grinders with 5/8″-11 threaded spindle. Good for detail work, edges, stairs, and small-to-medium areas. Coverage rate: roughly 60-100 square feet per hour depending on grinder power, technique, and material being removed.

7” Cup Wheels

For 7″ angle grinders or dedicated concrete grinders. Significantly faster coverage — roughly 150-250 square feet per hour. Requires a more powerful grinder (15+ amps corded, or high-output cordless platform). Overkill for occasional use; essential for professional coating-removal or surface-prep crews working larger areas.

Dust Control Is Mandatory

Grinding concrete creates more silica dust than almost any other concrete work. OSHA’s silica rule (29 CFR 1926.1153) requires either wet grinding OR a dust shroud paired with a 99%-efficient vacuum for any concrete grinding. Dry grinding without dust control is not compliant and exposes workers to immediate health hazards.

Minimum setup for dry grinding:

• Dust shroud sized for the cup wheel (4.5″, 5″, or 7″)
• HEPA-rated vacuum with automatic filter cleaning
• P100 respirator as backup PPE
• Pre-planning for the dust disposal workflow (sealed bags, not open containers)

See Silica Dust Safety Guide for specific shroud and vacuum models, OSHA compliance specs, and crew protocols.

Grinder Compatibility and RPM

Every cup wheel has a maximum RPM printed on the wheel or packaging. Running over-speed is the #1 cause of cup wheel failure. Check the wheel’s max RPM against the grinder’s rated speed:

Grinder Size	Typical Rated RPM	Cup Wheel Max RPM Required
4.5” / 5” angle grinder	10,000-12,000	13,300+
6” angle grinder	9,000-10,500	11,000+
7” angle grinder	7,500-8,500	8,700+
Dedicated concrete grinder	varies	match spec sheet

Cup wheels load harder than cut-off wheels. Underpowered grinders (under 10 amps corded) overheat during sustained cup wheel use. For daily surface-prep work, invest in a 15+ amp grinder or a dedicated concrete grinder.

Common Problems and Fixes

Cup Wheel Loads or Clogs

Almost always a bond-mismatch issue. Standard diamond cups load on sticky materials (fresh mastic, soft epoxy, rubber adhesives). Switch to a single-row wheel (wider gullets) or a PCD wheel for these materials.

Cup Wheel Wobbles

Check three things in order: the grinder spindle for play (worn bearings), the wheel for warping (drop damage retires the wheel), and the flange nut for proper torque. A wobble that doesn’t resolve after checking all three is a sign the wheel is damaged — retire it.

Grinder Bogs Down

Underpowered grinder for the cup wheel size and material. Either step down to a smaller cup wheel (4.5″ instead of 5″) or upgrade the grinder. Forcing an underpowered grinder burns out the motor and produces poor results.

Segments Break Off

Run over-speed, the wheel hit metal or a hard aggregate strike, or the wheel was damaged before mounting. A cup wheel with missing segments is unsafe — retire it immediately.

Our Complete Virginia Abrasives Cup Wheel Lineup

Cup Wheel	Pattern	Best For	Link
Double-Row Diamond	Staggered segments, 2 rings	General surface prep, leveling	VA Amazon store
Single-Row Turbo	Wide-gap segments, 1 ring	Coating removal, thinset	VA Amazon store
Turbo Spiral	Continuous spiral rim	Smooth finish, polishing prep	VA Amazon store
PCD 6-Segment	Large PCD segments	Heavy epoxy, mastic	VA Amazon store
PCD Multi-Segment	Many PCD segments	Maximum removal rate	VA Amazon store

Browse the full Virginia Abrasives cup wheel lineup on Amazon →

For the full cup wheel buying framework, see Grinding Cup Wheel Buying Guide. For floor-grinding technique, see How to Grind a Concrete Floor. For coating-specific picks, see Best PCD Grinding Cup Wheels.
