Cut Concrete With Angle Grinder (Pro)

Cutting concrete with an angle grinder takes the right blade, the right technique, and non-negotiable dust control. The short version: mount a segmented diamond blade sized to your grinder, cut dry in 2-3 progressive passes, manage silica dust with a vacuum shroud or P100 respirator, and accept the depth limit of your grinder size. This guide walks through the full step-by-step process, covers the common mistakes that ruin cuts or damage the tool, and explains when an angle grinder is the right choice versus when to step up to a cut-off saw.

The Short Answer

• Blade: segmented diamond, rated for concrete, matched to grinder diameter
• Arbor: 7/8″ for 4.5″ and 7″ grinders; 7/8″ with 20mm bushing for 9″
• Cut dry only — water with electric grinders is an electrocution hazard
• 2-3 progressive passes — don’t force full depth in one cut
• Max depth: ~1.5″ on 4.5″ grinder, ~2.5″ on 7″, ~3″ on 9″
• Dust control: vacuum shroud + HEPA (indoor) or P100 respirator (outdoor)
• Score first — a shallow first pass creates a guide channel for clean cuts

Cutting vs. grinding: this guide is about cutting — making a straight slot through concrete for a saw-line, repair, or control joint. If you need to grind a concrete floor flat, remove coatings, or prep a surface for polishing or epoxy, that’s a different tool (a cup wheel, not a cut-off blade) and a different technique. See How to Grind a Concrete Floor and the angle-grinder-specific How to Grind Concrete With an Angle Grinder for cup-wheel selection.

What You Need

The Grinder

• 4.5″ angle grinder — the standard household/small-contractor size. 10-11 amps minimum corded; high-output battery cordless. Depth of cut about 1.5″.
• 7″ angle grinder — for larger cuts, deeper penetrations. 13+ amps corded. Depth of cut about 2.5″.
• 9″ angle grinder or cordless cut-off saw — the deepest cut angle-grinder-class tool handles. 15+ amps corded or Milwaukee MX FUEL cordless. Depth of cut about 3″. When 3″ isn’t enough, step up to a gas handheld cut-off saw — see our blade picks for the Husqvarna K 770, Husqvarna K 970, or Stihl TS 420.

The Blade

• Segmented diamond rim for concrete (not continuous, not turbo — segmented cuts fastest on cured concrete)
• Diameter matched to grinder — never oversize the blade
• 7/8″ arbor standard (4.5″ and 7″) — 9″ blades usually 7/8″ with 20mm bushing
• Max RPM rated above your grinder’s speed — verify before mounting

For specific blade recommendations, see Best Diamond Blades for Concrete. For understanding rim types, see Segmented vs. Continuous vs. Turbo.

Safety Gear

• ANSI Z87.1 safety glasses with side shields (not fashion sunglasses)
• Face shield worn over safety glasses
• P100 respirator (the standard N95 is insufficient for prolonged silica exposure)
• Hearing protection — grinders at cut exceed 100 dB
• Cut-resistant gloves rated ANSI/ISEA A3 or higher
• Steel-toed boots
• Long sleeves and pants — sparks and debris burn synthetic clothing

Dust Control (Not Optional)

• Vacuum shroud sized for the grinder (4.5″, 7″, or 9″)
• HEPA-rated vacuum with automatic filter cleaning — standard shop vacuums are not compliant
• Outdoor backup: if vacuum isn’t available, work outdoors with wind at your back and wear a P100 respirator

For the full PPE and dust-control protocol see Silica Dust Safety Guide.

Step-by-Step: How to Cut Concrete with an Angle Grinder

Step 1: Mark the Cut Line

Use a chalk line for long straight cuts, a pencil for short ones. For curves or irregular shapes, mark with spray paint or crayon. Double-check measurements before cutting — you can’t un-cut concrete.

Step 2: Set Up Dust Control

Attach the vacuum shroud to the grinder. Connect the shroud to a HEPA-rated vacuum with automatic filter cleaning. Test the vacuum before starting — a shroud without active suction is worthless.

For outdoor work without vacuum access: position yourself with wind at your back, wear a P100 respirator, and warn bystanders. Never assume outdoor exposure is safe — wind direction changes.

Step 3: Secure the Workpiece

Unsecured concrete shifts during the cut, binding the blade and causing kickback. Clamp small pieces. For slabs, work only on material that’s bedded stable and won’t move during the cut. Never cut freestanding concrete that might drop onto the blade.

Step 4: Score the Line

Start with a shallow first pass — about 1/4″ deep — along the marked line. The scoring pass creates a guide channel that prevents the blade from wandering on subsequent passes. Hold the grinder steady. Let the blade cut at its own pace — don’t push.

Step 5: Deepen the Cut

Make additional passes, each slightly deeper than the last. Take 2-3 passes total to reach full depth rather than forcing one deep cut. Progressive passes reduce heat buildup, extend blade life, and produce cleaner cut faces.

Max cut depth by grinder size:

• 4.5″ grinder: ~1.5″ depth
• 7″ grinder: ~2.5″ depth
• 9″ grinder: ~3″ depth

Step 6: Handle Deeper Cuts

If the slab is thicker than your grinder’s max depth:

• Score and break: cut as deep as possible, then break along the scored line with a cold chisel and sledgehammer. Works for most demolition work.
• Cut from both sides: if accessible, score on both faces then break the middle. Clean full-depth cut without a bigger saw.
• Switch tools: for cuts over 3″ deep, use a handheld cut-off saw (14″ blade, ~4.9″ depth) or walk-behind flat saw (14-20″ blade, up to 8″ depth). See Concrete Saw Buying Guide.

Step 7: Clean Up

Vacuum the cut immediately — don’t sweep dry concrete dust, it re-suspends silica. Remove the vacuum shroud and inspect the blade for damage before storing. A blade with missing segments or visible core damage must be retired.

What Size Grinder for Concrete Cutting?

4.5″ Grinders (Most Common)

For trim cuts, scoring lines, small repair work, and cuts under 1.5″ deep. The standard contractor tool. Look for:

• 10+ amps corded (Makita GA4530R, DeWalt DWE402, Milwaukee 2680-20)
• High-output cordless (Milwaukee M18 FUEL, Makita 18V LXT)
• Safety guard compatible with vacuum shroud
• Variable speed helpful but not required

Pros: portable, widely available, low cost, accepts many blade types.

Cons: shallow depth of cut, bogs down on thick cuts.

7″ Grinders

For deeper cuts, wall penetrations, larger repair work. Heavier and more powerful than 4.5″.

• 13+ amps corded (Makita 9557PB, DeWalt DWE4557)
• Safety guard compatible with 7″ vacuum shroud
• Two-handed grip standard

Pros: 2.5″ depth of cut handles most standard wall penetrations in one pass.

Cons: heavier, harder to control in tight spaces, more expensive grinders.

9″ Grinders and Cordless Cut-Off Saws

For concrete cutting that almost crosses into cut-off saw territory. The Milwaukee MX FUEL COS350 and Husqvarna K 535i are the modern cordless standards.

• Battery-powered (gas-equivalent performance without fuel)
• 3″ depth of cut
• Purpose-built for concrete cutting (not general-purpose grinding)

Pros: deepest cut of the angle-grinder class. No cord. OSHA-compliant with proper dust control.

Cons: battery runtime limits production work. Most expensive option.

Common Mistakes

No Dust Control

The most dangerous mistake. One uncontrolled cut through concrete exposes you to silica levels exceeding OSHA PELs for hours. Silicosis is a progressive, incurable lung disease. Dust control is not negotiable.

Wrong Blade

Using a metal cut-off wheel, wood blade, or grinding disc on concrete is dangerous and doesn’t work. Metal cut-off wheels shatter on concrete. Wood blades load up and overheat. Grinding discs are too thick to cut efficiently. Always use a diamond blade rated for concrete.

Removing the Guard

The guard protects you from blade fragments, sparks, and kickback. Removing it for “easier access” is how fingers and eyes get lost. Keep the guard on, every cut.

Forcing the Cut

Letting the blade work is faster than forcing it. Excessive pressure overheats the blade, glazes the segments, and can break the blade. If the cut is slow, the blade is wrong (glazed or under-speed), not the pressure.

Skipping the Score Pass

Trying to cut full depth in one pass produces wandering cuts, fast blade wear, and uneven results. Score first, deepen progressively.

Cutting Too Deep for the Grinder

A 4.5″ grinder forced past 1.5″ depth is working beyond its design. The motor overheats, the blade binds, and kickback risk rises. Use the right grinder size for the depth required — or switch to a cut-off saw.

Using Water on a Standard Grinder

Water and electric motors create electrocution risk. Wet-rated grinders exist but standard angle grinders are dry-only. Never introduce water to manage dust on a standard grinder.

Can I Use Water to Cut Concrete with an Angle Grinder?

No — for standard electric grinders. Water and electric motors create an electrocution hazard. Always cut dry with a standard grinder and manage dust with a vacuum shroud or respirator.

Specialty wet-rated grinders exist for concrete polishing and tile work, but these are dedicated tools, not general-purpose angle grinders. Check the tool’s specific rating before introducing water.

For wet cutting concrete, use a dedicated concrete saw or wet tile saw.

Troubleshooting

Blade Stops Cutting / Cuts Slow

Glazed segments. The bond has smeared over the diamond crystals. Fix: dress the blade on a cinder block, sandstone, or a dedicated dressing stone. If glazing is persistent, the blade is wrong for the material — try a softer-bond blade.

Grinder Bogs Down Mid-Cut

Underpowered grinder for the blade size, or forcing the cut. Let the blade work at steady pace. If the grinder bogs at moderate feed rate, upgrade to a higher-amp grinder.

Cuts Wandering Off Line

Not scoring first, or the blade has warped. A cut that wanders despite a good score is a damaged blade — retire it.

Blade Cracks During Cut

Side-loading (grinding with the face), exceeding max RPM, or dropping the blade before mounting. A damaged blade must be retired immediately. Root-cause the damage before mounting the next blade.

Excessive Dust Despite Shroud

Shroud-to-material seal is leaking. Check shroud size matches grinder, shroud is flat to the surface, and the vacuum is pulling full suction. For outdoor work, wind shifts can defeat dust control — reassess position.

Related Guides

For alternative methods, see How to Cut Concrete Without a Saw. For cut-off wheel options when diamond blades aren’t appropriate, see Best Cut-Off Wheels for Concrete. For upgrading past angle-grinder territory, see Concrete Saw Buying Guide and Best 14-Inch Cut-Off Wheels.

Recommended Diamond Blades for Angle Grinder Concrete Cutting

Blade	Grinder Size	Best For	Link

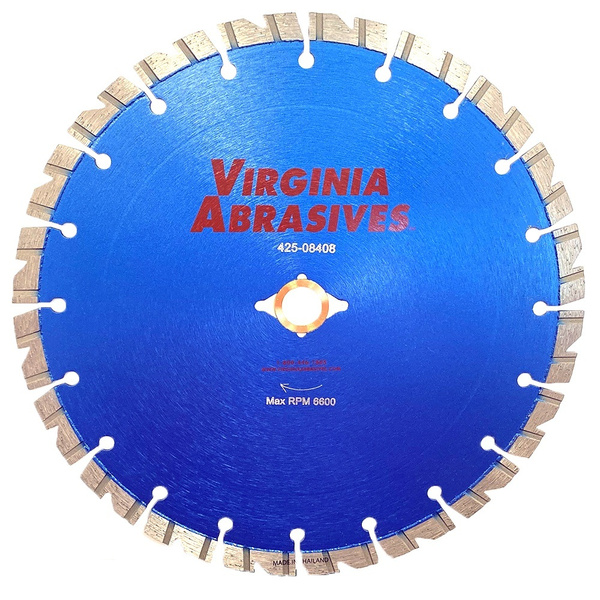

VA 9″ Ultra Value	9″ grinder / cordless cut-off	Deeper cuts, production field work	Amazon
VA 4.5″ Segmented Diamond	4.5″ grinder	Trim cuts, scoring, repair	VA Amazon store
VA 7″ Segmented Diamond	7″ grinder	Wall penetrations, deeper cuts	VA Amazon store

Browse the full Virginia Abrasives lineup on Amazon →

For the full blade selection framework, see Diamond Blade Buying Guide. For the complete silica safety protocol, see Silica Dust Safety Guide.
